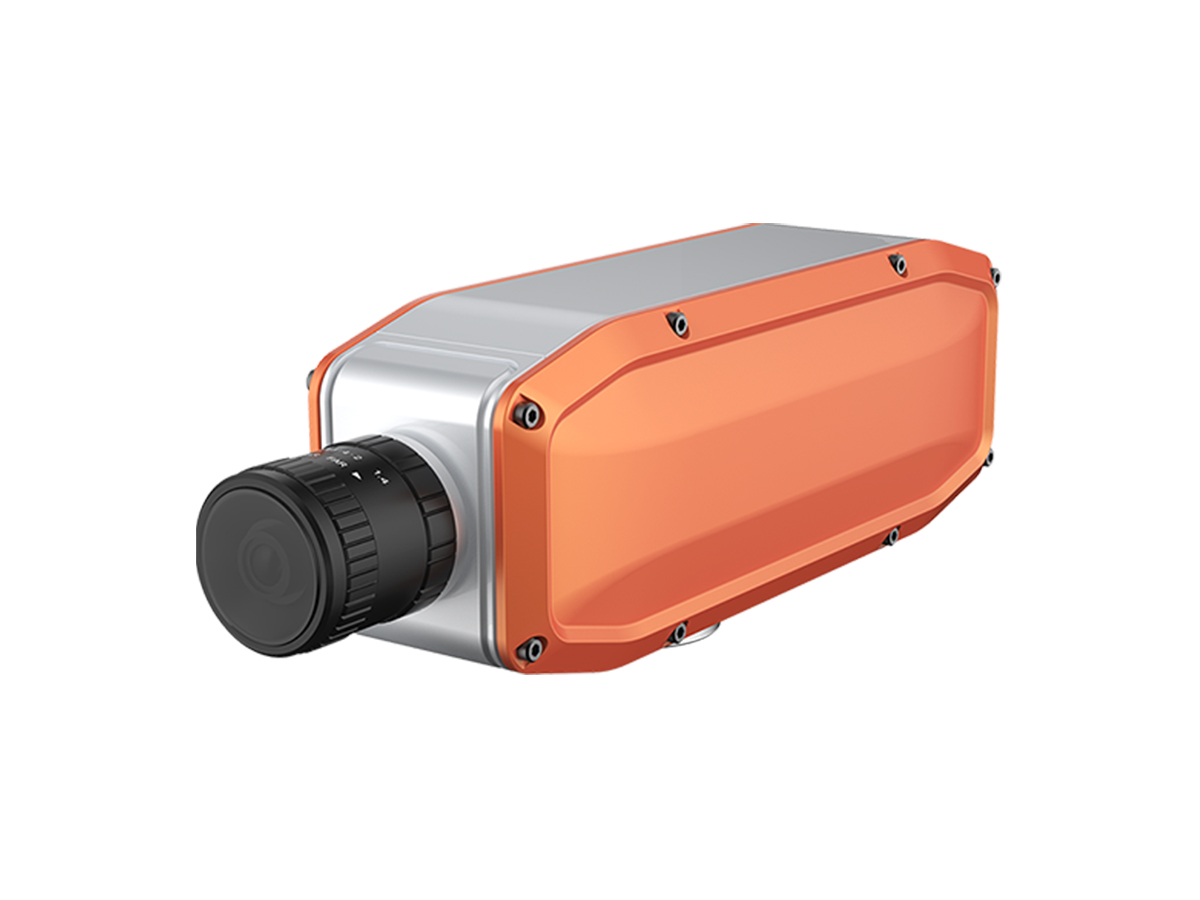

The near infrared hyperspectral camera FS-50 adopts the optical design of high transmittance, which improves the near infrared detection ability of hyperspectral camera to a new standard. The spectral resolution is better than 3.5nm (changing the slit size to achieve higher spectral resolution, but it will affect the signal strength). There are 128-900 near-infrared scanning cameras with high spectral coverage. The full spectrum acquisition speed can reach 128fps, and it has the function of band selection (ROI), which can achieve higher speed.
- Spectral range: 900-1700nm
- The wavelength resolution is up to 2.5nm and up to 1.5nm
- Weight: About 2kg
- Size: About 310mm * 60MM * 65mm (excluding lens)
Superior Performance & Advanced Detection
Pioneering Precision with Sohan Scientific Instruments

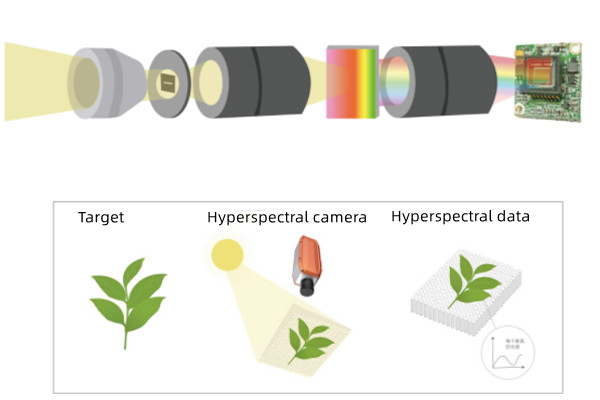

Superior Performance
- Spectral range: 900-1700nm, wavelength resolution 2.5nm to 1.5nm
- Slit size customization for higher spectral resolution
- Full spectrum acquisition speed up to 128fps
- Band selection (ROI) enabled for enhanced data precision
Explore New Detection Fields
- Machine vision & color detection
- Visible / near-infrared hyperspectral imaging
- Drug composition analysis
- Plastic & food sorting
- Agriculture & UAV-based detection
Technical parameter
| Serial number | Index | |
|---|---|---|
| 1 | Spectral range | 900-1700nm |
| 2 | Spectral resolution | Better than 3.5nm |
| 3 | Detector | CMOS |
| 4 | Detector interface | Camera Link |
| 5 | Detector power supply | 12V DC |
| 6 | Detector target size | 9.6mm x 7.68mm |
| 7 | Detector original resolution | 320x256 |
| 8 | Detector original pixel size | 30 µm x 30 µm |
| 9 | Pixel bit depth | 16 bits |
| 10 | Slit length | 9.6mm |
| 11 | Slit width | 30µm |
| 12 | Recommended pixel merging method | 2x2 |
| 13 | Number of effective pixels in spatial dimension | 160 |
| 14 | Number of bands | 128 |
| 15 | Field angle (FOV) | 15.6°/@-35mm |
| 16 | Instantaneous field angle (IFOV) | 0.71mrad/@-35mm |
| 17 | Frame rate | 344fps |
| 18 | Size | About 310mm * 60MM * 65mm (excluding lens) |
| 19 | Weight | About 2kg |
| 20 | Working temperature | 0-50°C |
| 21 | Storage temperature | -25-60°C |
| 22 | Interface | C-Mount |
